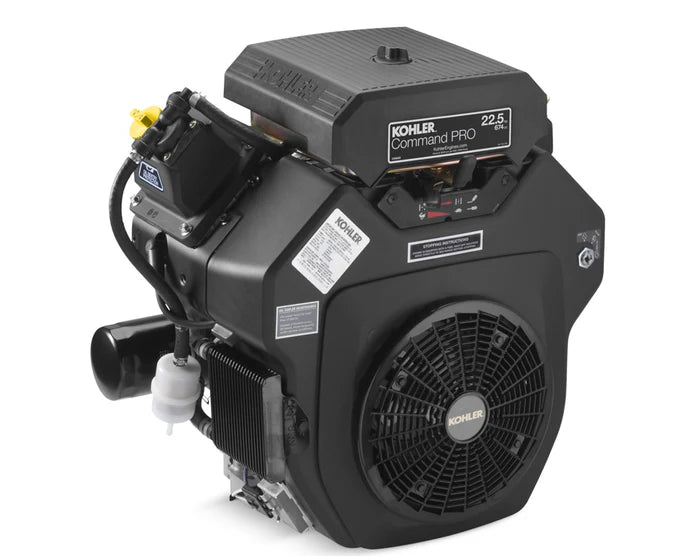

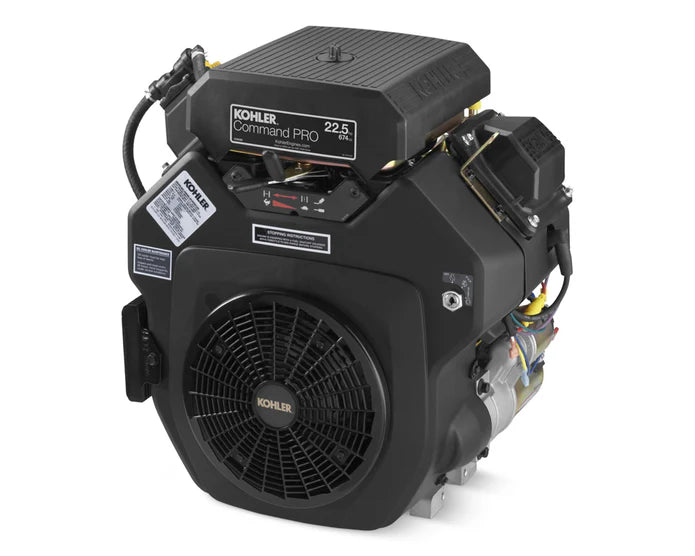

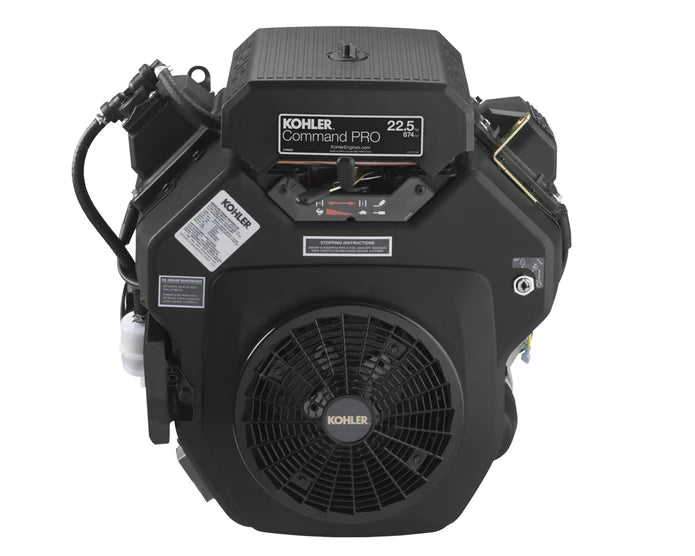

22.5HP Kohler CH680-3135 Command PRO Series Horizontal 1.437" x 4.46" Crankshaft
22.5HP Kohler CH680-3135 Command PRO Series Horizontal 1.437" x 4.46" Crankshaft
Couldn't load pickup availability
Replaces 76501, CH680-3002
Replaces 66501
This engine 76501 is also a good replacement for a spec # 64567, 76575
- Engine Controls-Key Switch, Throttle and Choke Controls
- Overhead Valve Design
- Hydraulic Valve Lifters
- Cast-Iron Cylinder Liners
- Electronic Ignition
- Large Capacity Dual Element Air Cleaner
- High Efficiency Grass Screen and Fan
- Closed Breather System
- Stellite Exhaust Valves
- Full Pressure Lubrication
- Large Capacity In-Line Fuel Filter
- Easy Access Valve Cover Oil Fill-Yellow
- Oil Level Dipstick-Yellow
- Large Capacity Oil Filter, Dual Oil Drain
- Oil Sentry (Switch Installed and Wired but Unconnected)
- Variable Speed Governor
- High Performance Accelerator Pump Carburetor
- Fuel Shutdown Solenoid, Smart-Choke Carburetor
- Mechanical Fuel Pump
- High Performance Spark Plugs
- 12 Volt Solenoid Shift Starter
- 20 Amp Alternator, Regulated
- Wiring harness 24176163
- Oil Pan 24009150
- Crankshaft-2401404 1.437" (1 7/16") (36 mm) Diameter x 4.453" (113 mm) PTO Length, 0.375" (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
- PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
- 7" (178 mm) Diameter Pilot
ENGINE HAS NO OIL / MUST ADD OIL BEFORE STARTING
